0.1 至 2.0 L（成人）/ 0.02 至 0.3 L（儿童）/ 0.003 至 0.1 L（新生儿）
IPPV、IPPVAssist/CMV、CMVAssist、SIMV、SIMVPsupp、MMV、MMVPsupp、BIPAP、ASB
0 至 100/分钟、0 至 150/分钟（新生儿）

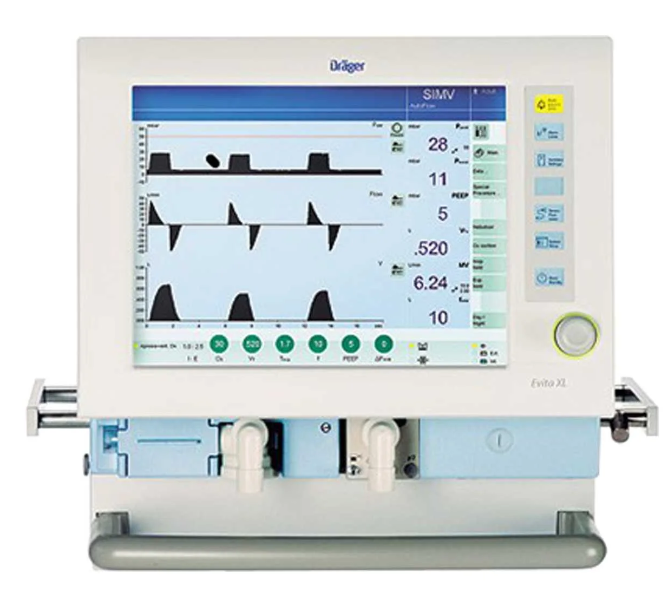

Drager Evita XL 呼吸机 应用
急救护理和重症监护室
特征
操作简单、方便
NIV plus 面罩通气
集成二氧化碳监测
带 AutoFlow 或 PCV+ 的开放式呼吸系统
SmartCare/PS 自动脱机系统
产品描述
Evita XL 呼吸机将广泛的性能与许多先进功能相结合。因此，无论患者的病情如何，无论您是为成人、儿科还是早产儿进行通气，Evita XL 都能提供最先进的侵入式或非侵入式通气。
在患者床边：
• 先进的标准功能和广泛的选项
• 通过专注于基本功能和直观操作，提高日常工作效率
在整个医院：
• 由于新设计的推车，几乎在任何运输情况下都可以轻松方便地操作。
• 由于标准化，提高了员工效率并降低了培训和支持成本
特点
NIV plus 面罩通气
集成 CO₂ 监测
带 AutoFlow 或 PCV+ 的开放式呼吸系统
SmartCare / PS 自动脱机系统
操作简单方便
Specifications of Drager Evita XL Ventilator
| Patient Age Group | Adults, Children, Infants (body weight of at least 3 kg/6.6 lbs), Premature infants with NeoFlow option |
| Tidal Volume | 0.1 to 2.0 L (Adult) / 0.02 to 0.3 L (Pediatric) / 0.003 to 0.1 L (Neonatal) |
| Ventilation Modes | IPPV, IPPVAssist/CMV, CMVAssist, SIMV, SIMVPsupp, MMV, MMVPsupp, BIPAP, BIPAP, ASB, BIPAPAssist / PCV+, PCV+Psupp, PCV+Assist, APRV, CPAP, CPAPASB / CPAP/Psupp, CPAP/Psupp, ILV, PPS (optional) |
| Respiratory Rate | 0 to 100/min, 0 to 150/min (Neonatal) |
Controls | |
| Trigger | Internal automatic pressure trigger, Flow, Volume (Flow adjustable 0.3 to 15 L/min) |
| Settings | |
| Oxygen concentration | 21 to 100 Vol.% |
| Inspiratory Pressure | 0 to 95 mbar/cmH₂O |
| PEEP/CPAP | 0 to 50 mbar/cmH₂O |
| Inspiratory time | 0.1 to 10 seconds |
| Inspiratory flow | 6 to 120 L/min (Adult), 6 to 30 L/min (Pediatric and Neonatal) |
Monitoring | |
| Lung function monitoring | Resistance (0 to 600 mbar/cmH₂O L/s), Compliance (0 to 300 mL/mbar/cmH₂O) |
| Breathing gas temperature | High |
Performance | |
| Display unit size | 15 inch |
| Display Technology | TFT color touch screen |
| Safety Valve | 100 mbar/cmH₂O |
| Valve response time | ≤ 5 ms |
| Control Principle | Time cycled, volume constant, pressure-controlled |
| Minute volume | MV, MVspont (0 to 120 L/min, MVleak (0 to 99 L/min) |
| Maximum flow for pressure assist/ spontaneous breathing | 180 L/min |
Operating Data | |
| Mains supply nominal voltage and frequency range | 100 to 240 V, 50/60 Hz, 10 to 30 V DC |
| Power Consumption | Approx. 125 W |
| Dimensions | 530 x 315 x 450 mm / 20.9 x 12.4 x 17.7 inches (without trolley) |
| Weight | Approx. 50 kg / 64 lbs |
| Alarm | |
| Inspiratory O₂ concentration (FiO₂) | 15 to 100 Vol.% (High / Low) |
| Airway Pressure | High / Low |
| Apnea alarm time | 5 to 60 seconds |
| End-expiratory CO concentration (etCO₂) | 0 to 100 mmHg (High / Low) |
| Expiratory minute volume (MVe) | High / Low |
| SpO₂ pulse | High / Low (optional) |
Additional Details | |
| Gas supply | O₂, air: 2.7 to 6 bar / 39 to 87 psi |
| Safety valve opening pressure | 100 mbar/cmH₂O |
| Airway pressure measurement Display range | -45 to 110 mbar/cmH₂O (Peak pressure, plateau pressure, mean pressure, PEEP, min. pressure) |
| Tidal volume Measured Display range | Vtasb 0 - 10, respectively 0 - 3999 mlVtasb 0 - 10, respectively 0 - 3999 ml |
| Enhancements | AutoFlow - Automatic adaptation of inspiratory flow in volume controlled modes, ATC - Automatic Tube Compensation, NIV - Mask Ventilation (optional), SmartCare/PS - Automated clinical protocol in CPAP/ASB / CPAP/Psupp (optional), Lung Protection Package - Recruitment maneuvre and Low Flow maneuvre (optional) |
| Pressure Assis | 0 to 95 mbar/cmH₂O |
| Rise time for pressure assist (Slope) | 0 to 2 seconds |
| Leakage Compensation | Automatic |
| CO₂ production (VCO₂) | 0 to 999 mL/min, STPD |
| Dead space ventilation (Vds/VT) | 0 to 99% |
| Weaning parameters | – RSB (0 to 9999 (min x L)) / NIF (-45 to 0 mbar/cmH₂O) |
| Digital machine output | Output and reception via an RS 232 C interface, Output for independent lung ventilation (ILV) , For output and reception via two RS 232 C interfaces (optional) |
| Analog Machine output | For analog output of two measured values (optional) |
