Adult, Paediatric & Neonatal 2 to 150 bpm
Neonates: 2 to 100 ml, Pediatric: patients 20 to 300 ml
Pressure to controlled ventilation: PC to CMV, PC to AC, PC to SIMV, PC to PSV, PC to MMV, PC to APRV;

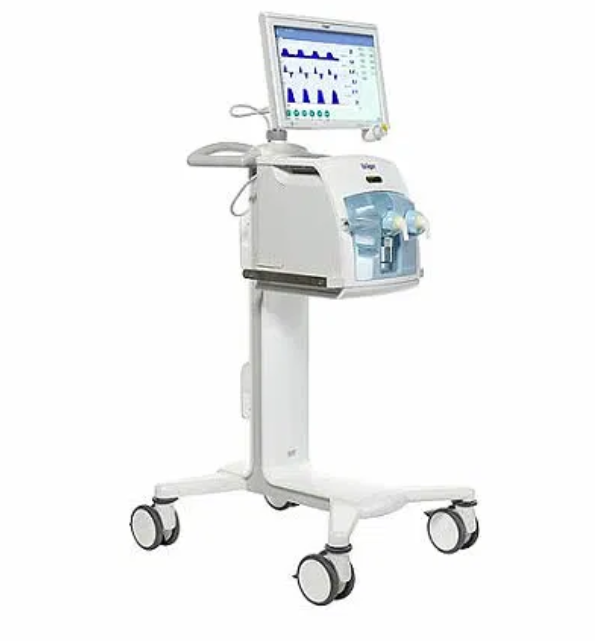

德尔格Babylog VN500
结合了我们历年来在最新科技上所钻研的经验。所诞生的就是为小小病人所设计的完整、整合式通气解决方案。迈向今日新领域，同时为明日的发展做好准备。
可配置的使用者介面与监测工具
由使用者决定的个别化监测视窗
标准、直观且人性化的图形式使用者介面
包含辅助说明功能的线上帮助
延伸的监测功能与可视化的智慧数据
工作站功能
可依您的需要配置
可下载萤幕截图作为训练、研究和智识传递
可透过USB 快速、标准地配置所有Babylog VN500 装置
可将C500 Cockpit 显示器连结到投影机
可将呼吸器事件纪录输出，以便支援学习与研究
Advancing Neonatal Ventilation Technology
进阶呼吸保健
包含深呼吸功能的高频震荡通气，可用于肺部扩充与呼气容量保证
Dräger 原创的漏气调整与补偿技术能维持装置精密的驱动与维持特定容积
PC-MMV 可用于呼吸器脱离与促进自主呼吸，并能自动视病患需求自动调整通气支持
整合无创通气与高流量氧气治疗
降低认知工作负荷的决策工具
智慧型肺视图能提供肺顺应性与阻力（包含自主呼吸）的图型显示
趋势、测量的参数、波形与呼吸环
工作站功能
Dräger 独创的漏气调节和漏气补偿技术，可保持灵敏的触发和容量目
PC-MMV 可用于脱机，促进自主呼吸并根据患者需求自动调整支持
集成无创通气和高流量氧气治疗
Specifications
| Ventilation Modes | Pressure-controlled ventilation: | Support of spontaneous breathing: |
PC-CMV PC-AC PC-SIMV PC-PSV PC-MMV PC-APRV | SPN-CPAP/PS SPN-CPAP/VS SPN-PPS SPN-CPAP | |
| Enhancements | Babylog VN500 and Infinity® C500: 420 × 685 × 410 mm (11.5 × 12.6 × 16.1 in) | Babylog VN500 and Infinity® C500 on trolley: 577 × 1400 × 677 mm (22.7 × 55.1 × 26.7 in) |
| Weight | Babylog VN500 and Infinity® C500: 25 kg (55.1 lbs) Babylog VN500 and Infinity® C500 on trolley: 59 kg (130 lbs) GS500: 10.5 kg (23 lbs) | PS500: 27 kg (59.5 lbs) Mounting Adapter for 38 mm pole: 2.35 kg (5.18 lbs) |
enu navigation and alarm silencing.
The Babylog VN500 has a unique interface for monitoring the patient’s pulmonary status, called Smart Pulmonary View . This is a graphic display of the compliance and resistance as well as of the spontaneous and mandatory minute volume.
Pressure Control Assist Control
Mandatory breaths: Machine triggered (preset frequency) or patient triggered (flow sensitivity) and machine cycled (inspiratory time)
Within-breath settings:
Operator-set PEEP, frequency, inspiratory pressure, rise time, and inspiratory time
Spontaneous breaths: Permitted during mandatory breath but not between mandatory breaths
Between-breath targets: None
Pressure Control Assist Control with Volume Guarantee
Mandatory breaths: Machine triggered (preset frequency) or patient triggered (flow sensitivity) and machine cycled (inspiratory time)
Within-breath settings:
Operator-set PEEP, frequency, rise time, and inspiratory time
Ventilator-set inspiratory pressure
Spontaneous breaths: Permitted during mandatory breath but not between mandatory breaths
Between-breath targets: Operator-set tidal volume
Pressure Control Airway Pressure Release Ventilation
Mandatory breaths: Machine triggered (preset frequency) and machine cycled (inspiratory time). Patient triggering of mandatory breaths is possible using the AutoRelease feature. This triggers inspiration once a preset expiratory flow threshold is reached. When AutoRelease is turned on, the switch from PHigh to PLow is synchronized with the patient’s breathing. Thus, with AutoRelease, what were formerly machine-triggered and machine-cycled (mandatory) breaths are converted to patient-triggered and patient-cycled (spontaneous) breaths.
Within-breath settings:
Operator-set PEEP (called PLow), peak inspiratory pressure (called PHigh), rise time, inspiratory time (called THigh), and expiratory time (called TLow). The inspiratory trigger sensitivity may also be set (using AutoRelease) as a percentage of peak expiratory flow.
Spontaneous breaths: Patient triggered (flow sensitivity) and patient cycled (% peak inspiratory flow). Spontaneous breaths are permitted both between and during mandatory breaths.
Within-breath settings:
Automatic tube compensation
Between-breath targets: None
Pressure Control Continuous Mandatory Ventilation
Mandatory breaths: Machine triggered (preset frequency) and machine cycled (inspiratory time) and patient trigger efforts are ignored. Spontaneous breaths are permitted both between and during mandatory breaths. Because of this feature, the mode is classified as a form of intermittent mandatory ventilation, not continuous mandatory ventilation, despite the name given by Dräger.
Within-breath settings:
Operator-set PEEP, frequency, inspiratory pressure, rise time, and inspiratory time
Spontaneous breaths: Patient triggered (flow sensitivity) and patient cycled (% peak inspiratory flow)
Within-breath settings:
None
Between-breath targets: None
Pressure Control Mandatory Minute Volume Ventilation with Volume Guarantee
Mandatory breaths: Machine triggered (preset frequency) or patient synchronized (flow sensitivity) and machine cycled (inspiratory time). Mandatory breaths are suppressed if minute ventilation from spontaneous breaths is above preset minute ventilation target (i.e., product of tidal volume and frequency).
Within-breath settings:
Operator-set PEEP, frequency, rise time, and inspiratory time
Ventilator-set inspiratory pressure
Spontaneous breaths: Patient triggered (flow sensitivity) and patient cycled (% peak inspiratory flow)
Within-breath settings:
Operator-set inspiratory pressure and rise time
Between-breath targets: Operator-set tidal volume. The settings for tidal volume and frequency constitute a between-breath target for minimum minute ventilation. Mandatory breaths are suppressed if minute ventilation from spontaneous breaths is this target.
Pressure Control Pressure Support Ventilation
Mandatory breaths: Machine triggered (preset frequency) and patient cycled (% peak inspiratory flow)
Within-breath settings:
Operator-set PEEP, frequency, inspiratory pressure, and rise time
Spontaneous breaths: Patient triggered (flow sensitivity) and patient cycled (% peak inspiratory flow)
Within-breath settings:
Operator-set inspiratory pressure and rise time
Between-breath targets: None
Pressure Control Pressure Support Ventilation with Volume Guarantee
Mandatory breaths: Machine triggered (preset frequency) and patient cycled (% peak inspiratory flow)
Within-breath settings:
Operator-set PEEP, frequency, and rise time
Ventilator-set inspiratory pressure
Spontaneous breaths: Patient triggered (flow sensitivity) and patient cycled (% peak inspiratory flow)
Within-breath settings:
Operator-set rise time
Ventilator-set inspiratory pressure
Between-breath targets: Operator-set tidal volume
Spontaneous Continuous Positive Airway Pressure/Pressure Support
Mandatory breaths: Not allowed
Spontaneous breaths: Patient triggered (flow sensitivity) and patient cycled (% peak inspiratory flow)
Within-breath settings:
Operator-set inspiratory pressure and rise time
Between-breath targets: None
