Various spontaneous breathing support, e.g.: VC-MMV, SPN-PPS, Volume Support (VS), Pressure Support (PS)
Adults - 0.1 to 3.0 L, Pediatric - 0.02 to 0.3 L, Neonates 0.002 to 0.1 L
Volume controlled ventilation - VC-CMV, VC-SIMV, VC-AC, VC-MMV Adults - 0.5 to 98/min, Pediatric patients & Neonates - 0.5 to 150/min
产品描述

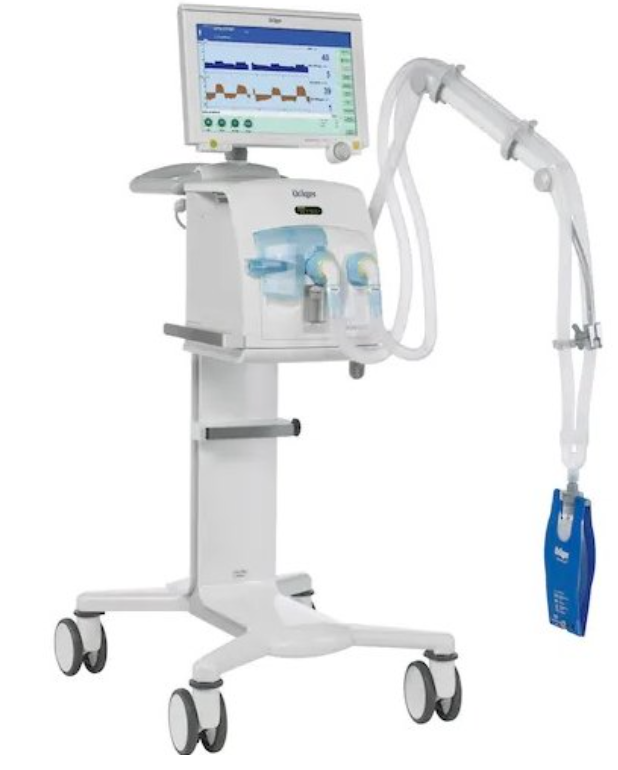

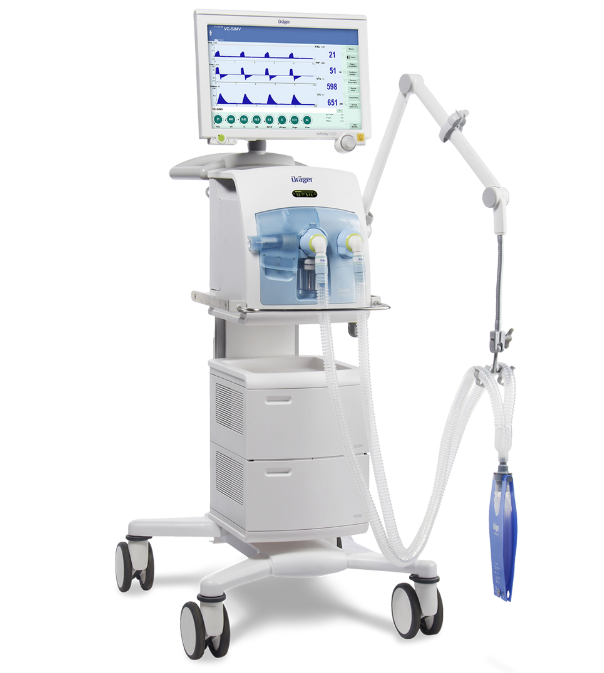

Evita V300 是一款可扩展且多功能的设备，可提供高品质的通气。为了满足和掌握日常医院工作不断变化的条件和挑战，您需要具有多种功能的灵活设备。
优点
• 成人、儿童和新生儿通气：侵入式、非侵入式和 O2 疗法
• 容量或压力控制通气、自主呼吸

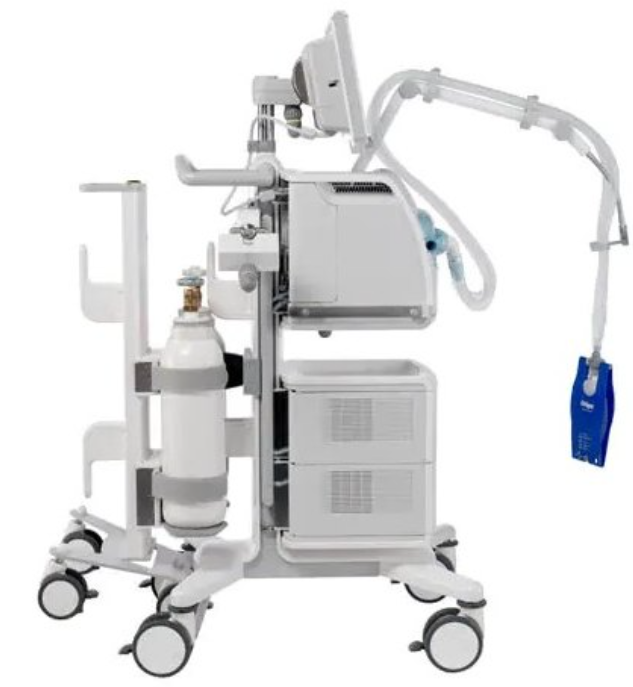

• 可选气体和电源装置，独立性强：GS500（压缩空气）、PS500（电源）、TSU（气体）
• 通过连接到供应装置或推车，实现灵活的工作站集成
• 可通过 USB 轻松传输单独可调的配置

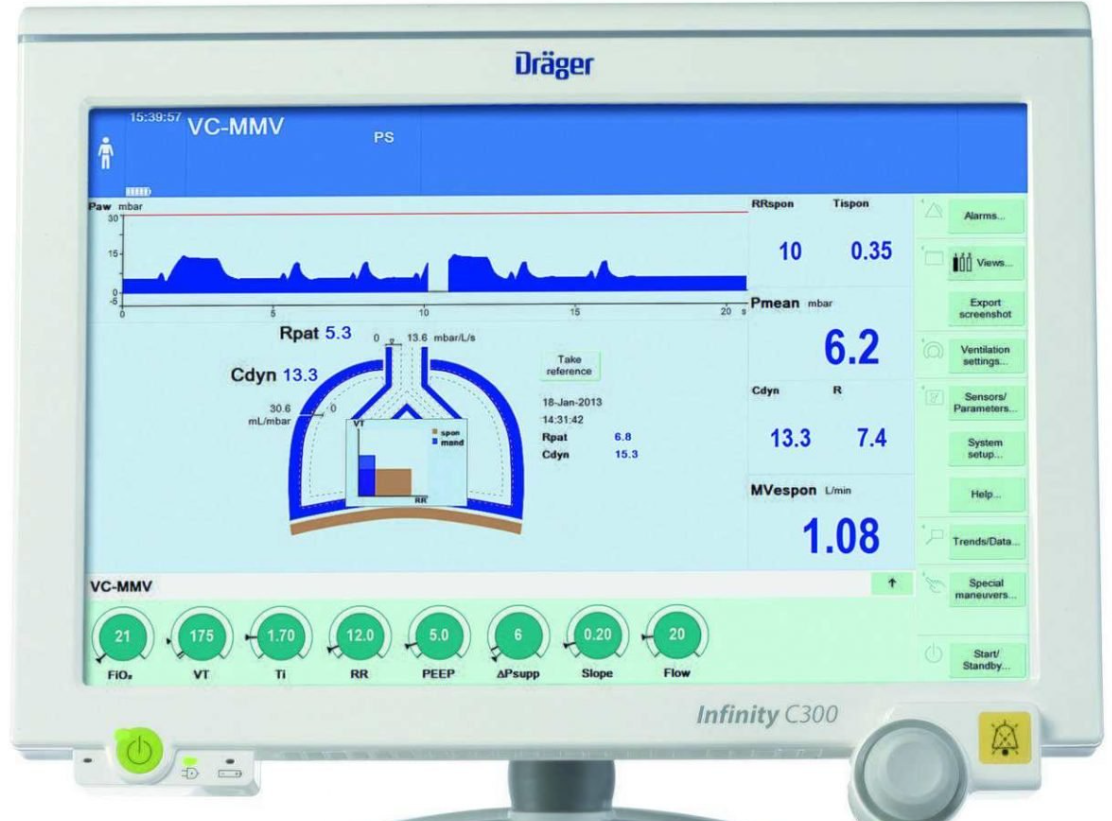

• 上下文相关帮助功能便于设置通气参数并解释设备功能
• 自动管补偿 (ATC) 补偿人工气道阻力
• 容量控制通气中的 AutoFlow 以尽可能低的压力提供潮气量
• 带有可选 AutoRelease 的 PC-APRV 可实现自主呼吸，并具有持续气道正压和短期压力释放
• 借助 AutoFlow®、Volume Guarantee (VG) 或 SPN-CPAP 实现深呼吸和自由呼吸
特点
使用 SmartCare/PS 自动断奶
自动泄漏补偿
多功能且可扩展
高通气质量
应用

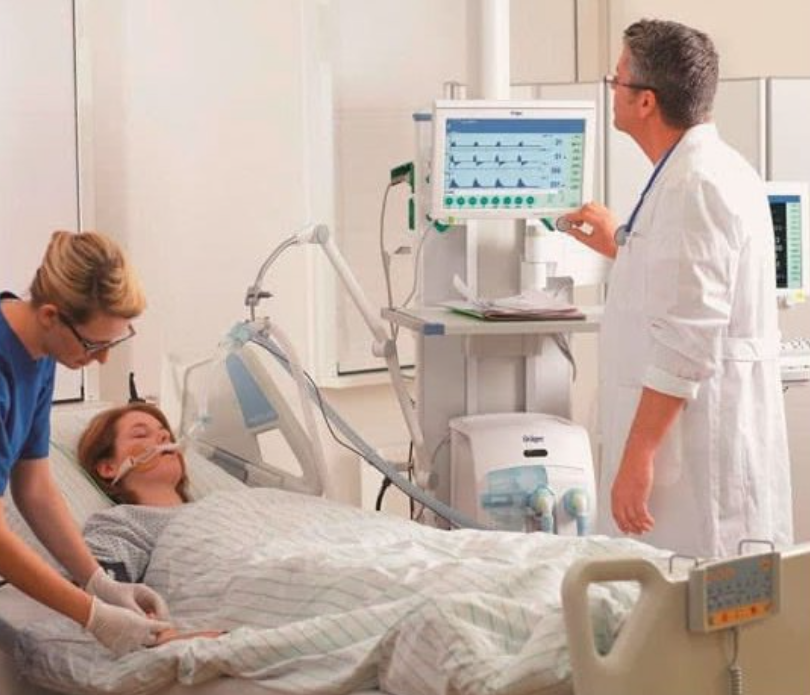

急救护理和 ICU
Drager Evita V300 呼吸机规格
| Model Name/Number | Evita V300 |
| Patient Age Group | Adults, Pediatric, Neonates |
| Tidal Volume | Adults - 0.1 to 3.0 L, Pediatric - 0.02 to 0.3 L, Neonates 0.002 to 0.1 Volume controlled ventilation - VC-CMV, VC-SIMV, VC-AC, VC-MMV |
| Ventilation Modes | APRV, PC-PSV Support of spontaneous breathing ‒ SPN-CPAP/PS, SPN-CPAP/VS, SPN-CPAP, SPN-PPS Support of spontaneous breathing ‒ SPN-CPAP/PS, SPN-CPAP/VS, SPN-CPAP, SPN-PPS |
| Respiratory Rate | Adults - 0.5 to 98/min, Pediatric patients & Neonates - 0.5 to 150/min |
| Frequency | 50/60 Hz |
| Oxygen concentration | 21 to 100 Vol.% |
| Inspiratory Pressure | 1 to 95 mbar |
| PEEP/CPAP | 0 to 50 mbar |
| Inspiratory time | Adults - 0.11 to 10 sec, Pediatric Patients & Neonates - 0.1 to 10 sec, Airway Pressure - 0.1 to 30 sec |
| Expiratory time | 0.05 to 30 s |
| Inspiratory flow | Adults - 2 to 120 L/min, Pediatric patients & Neonates - 2 to 30 L/min |
Monitoring | |
| Volume Monitoring | High/Low |
| Disconnect alarm delay time | 0 to 60 seconds |
| Tachypnoea | High/Low |
Endotracheal Suction
| Reconnection detection | Automatic |
| Disconnection detection | Automatic |
| Initial Oxygen enrichment | Max. 3 minutes |
| Active suction phase | Max. 2 minutes |
| Final oxygen enrichment | Max. 2 minutes |
| Factor for pediatric patients and neonates | 1 to 2 |
| Supply system for spontaneous breathing and Psupp | Adaptive CPAP system with high initial flow |
| Additional Details | |
| Gas supply | 2.7 to 6.0 bar (O₂ gauge pressure), 2.7 to 6.0 bar (Air gauge pressure) |
| Special procedures | Suction maneuver, Manual inspiration/hold, Medication nebulization, P0.1, PEEPi, NIF |
| Device Compliance | Range 0 to 650 mL/mbar |
| Airway pressure measurement Display range | 60 to 120 mbar (Plateau pressure, Positive end-expiratory pressure, Peak inspiratory pressure, Mean airway pressure, Minimum airway pressure) |
| Tidal volume Measured Display range | 0 to 5,500 mL BTPS (Tidal Volume (VT), Inspiratory tidal volume (not leakagecompensated) of mandatory breaths (VTimand), Expiratory tidal volume (not leakagecompensated) of mandatory breaths (VTemand), Inspiratory tidal volume (not leakagecompensated) of spontaneous breaths (VTispon) |
| Respiratory rate Display range | 0/min to 300/min (Breathing frequency, Mandatory respiratory rate, Spontaneous breathing frequency) |
| Enhancements | AutoFlow / Volume Guarantee (VC-AC), Smart Pulmonary View , Automatic Tube Compensation (ATC), Mask Ventilation (NIV), CO₂ monitoring, Monitoring Plus, Additional Trends and Loops, SmartCare/PS 2.0, Automated clinical protocol in SPN-CPAP/PS, O2-therapy Special procedures, Suction maneuve |
| Therapy types | Invasive ventilation (Tube), Non-invasive ventilation (NIV) & O2-therapy |
| Inspiratory Pressure Limit | 2 to 100 mbar, Air Pressure - 1 to 95 mbar |
| Pressure Assis | 0 to 95 mbar |
| Rise time for pressure assist (Slope) | Adults & Pediatric patients - 0 to 2 s, Neonates 0 to 1.5 s |
| Automatic Tube Compensation | Inside tube diameter Endotracheal tube (ET) - Adults - 5 to 12 mm (0.2 to 0.47 inch), Pediatric patients - 2 to 8 mm (0.08 to 0.31 inch), Neonates 2 to 5 mm (0.08 to 0.2 inch), Tracheostoma tube (Trach.) - Adults - 5 to 12 mm (0.2 to 0.47 inch), Pediatric patients - 2.5 to 8 mm (0.1 to 0.31 inch), Degree of compensation - 0 to 100 % |
| Maximum time of low pressure level in APRV/PEF | 0.05 to 30 s |
| Expiratory Pressure | 0 to 50 mbar |
| Termination criterion (peak expiratory flow) Exp. term | 1 to 80% (PEF) |
| Proportional Pressure Support Flow Assist | Adults - 0 to 30 mbar/L/s, Pediatric patients - 0 to 100 mbar/L/s & Neonates - 0 to 300 mbar/L/s |
| Proportional Pressure Support Volume Assist | Adults - 0 to 100 mbar/L |
| Proportional Pressure Support corresponds to compliance compensation | 10,000 to 10 mL/mbar, Pediatric patients - 0 to 1,000 mbar/L, Neonates - 0 to 4,000 mbar/L, 1,000 to 0.3 mL/mbar |
| Oxygen Therapy | Continuous Flow - 2 to 50 L/min, O₂ concentration FiO₂ - 21 to 100 Vol% |
| Leakage Compensation | On/Off – On: full compensation active, Off: only trigger compensation active |
| Oxygen Measurement Display range | Inspiratory O₂ concentration (FiO₂) Range - 18 to 100 Vol% |
| CO₂ Measurement Display range | 0 to 100 mmHg (etCO₂) |
| Displayed Resistance | ange 0 to 1,000 mbar/ (L/s) |
| Leakage minute volume | Range 0 to 99 L/min BTPS |
| Rapid Shallow Breathing | Range 0 to 9,999 (/min/L) |
| Negative Inspiratory Force | Range -80 mbar to 0 mbar |
| Occlusion pressure | Range 0 to -25 mbar |
| Digital machine output | Digital output and input via an RS232 C interface, Drager MEDIBUS and MEDIBUS.X |
