21,5“ Breitbild Monitor, Gelenkarm, Touchscreen 743×568×1360mm
B, 2B, M, THI, Color, DPI, PW, CW, TDI, 3D, 4D, Stress Echo, Anatomischer M-Mode, Contrast Imaging
2 year
描述

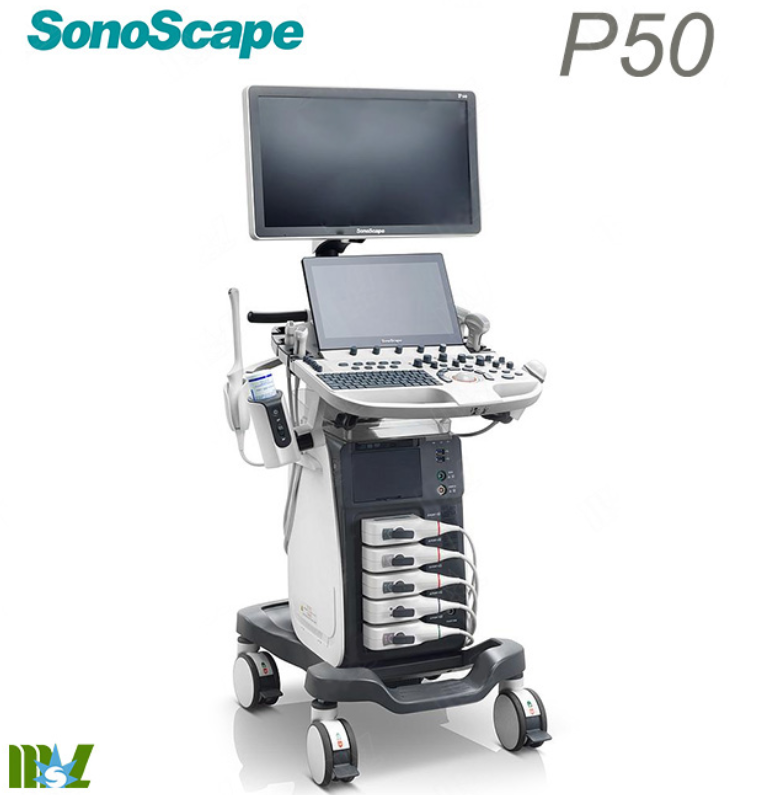

SonoScape 的全新 P50 超声系统可实现更多功能。其清晰的图像、自动校正和计算以及用户多功能性可确保可靠的诊断并为超声应用开辟新途径。
强大紧凑精度
Sonoscape P50 的设计充分考虑了人们对超声检查日益增长的期望和需求——它是一款轻薄、隐蔽的推车系统，适合工作空间有限的狭小拥挤空间。它满足了您和您的患者在狭小空间内舒适检查的所有需求。
单晶探头
宽带单晶探头提供更好的信号比，可捕捉优质图像，并在近场和远场提供更高的灵敏度。
μ-Scan+
最新一代 μ-Scan 成像技术通过降低噪音、提高信号强度和可视化程度，提供更高的图像质量。
动态色彩
虽然基于熟悉的彩色多普勒技术，但动态色彩却远远超越了它，能够更好地捕捉彩色血流，并在较慢的速度下对哪怕是最小的静脉进行详细可视化。
所有应用程序均具有一致的图像质量
The solution for radiology
Imagine a state-of-the-art ultrasound system so versatile it can meet the needs of virtually any clinical environment.
With the Sonoscape P50, you have a high-performance ultrasound system that meets the imaging needs for a wide range of clinical applications.
The solution for obstetrics and gynecology
With its superior image quality, automated measurement tools and a host of specialized features for obstetrics and gynecology, the Sonoscape P50 is the ideal solution for clinical exams.
The solution for cardiovascular exams
The Sonoscape P50 provides clear 2D clinical images and uses Doppler to examine critical cardiac output. Using single crystal probes, the Sonoscape P50 produces higher frame rates and a Doppler effect to effectively and accurately assess critical cardiac output.
Intelligent Tools
The SonoscapeP50 supports your examination workflow with intelligent analysis tools and automatic image optimization. To make the exam even easier for the user, the system configuration ensures that the system works optimally for you and your team.
Available with a range of high definition probes:
Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm
Endovaginal 6V3 (Gynecology, Obstetrics, Urology), 3-15MHz/ R10mm
Linear array L742(Vascular, Small parts, MSK etc.), 4-16 MHz/ 38 mm
Linear array 12L-A (Vascular, Small parts, MSK etc.), 3-17 MHz/ 52 mm
Linear array 12L-B (Vascular, Small parts, MSK etc.), 3-17 MHz/ 38 mm
Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0 MHz/ R50 mm
Convex array C1-6 (Single crystal) (Abdominal, Obstetrics, Gynecology), 1.0-8.0 MHz/ R50 mm
Convex array C322(Abdominal Biopsy), 2-6.8 MHz/ R20mm
Convex array C613(Cardiology, Pediatrics),3-15 MHz/ R14mm
Phased array 4P-A (Cardiac, Transcranial), 1.0-5.4 MHz
Phased array 7P-A (Cardiac, Transcranial, Infant),2-9MHz
Phased array S1-5 (Single crystal) (Cardiac, Transcranial), 1.0-7.0 MHz
Endocavity 6V3 (Gynecology, Obstetrics, Urology), 3-15 MHz/ R10 mm
Endocavity 6V3A (Gynecology, Obstetrics), 3-15 MHz/ R8 mm(Vaginal Dilator: EDVS)
Endocavity 6V7 (Gynecology, Obstetrics), 3-15 MHz/ R10 mm
Volumetric convex array VC6-2 (Obstetrics, Abdominal, Gynecology), 2-6.8 MHz/ R40 mm
Volumetric endocavity VE9-5 (Obstetrics, Gynecology, Urology), 2-13 MHz/ R10 mm
Biplane BCL10-5 (Urology), Convex 3.9-11 MHz/ R10mm, Linear 6-15 MHz/ 60mm
Phased array transesophageal MPTEE (Cardiac), 4-13 MHz
Linear array 10I2 (Intra-operative), 4-16 MHz/ 25mm
Linear array 12LI-A (Intra-operative), 4-16MHz/ 33mm
Linear array 12LT-A (Intra-operative), 4-16MHz/ 33mm
Convex array 6CT-A (Intra-operative), 3-15MHz/ R40mm
Convex array 6CI-A (Intra-operative), 3-15MHz/ R40mm
Hardware
P50 Standard Configurations:

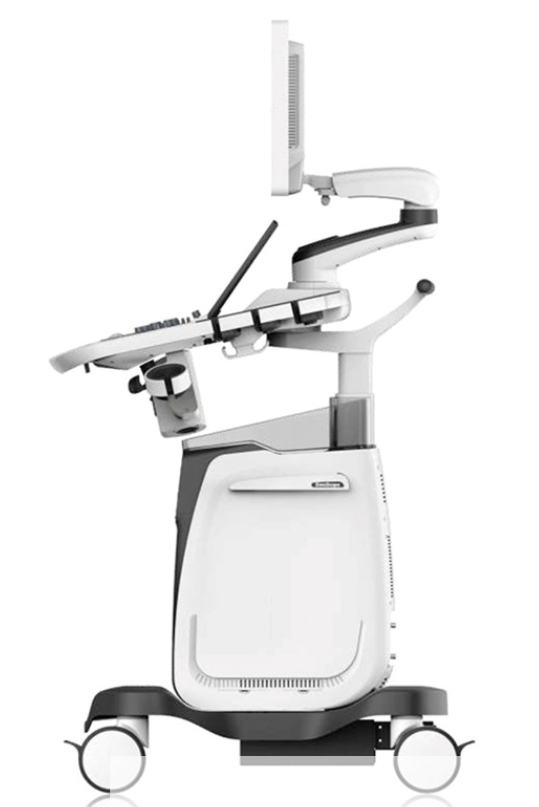

P50 main unit size: 743×568×1360mm
21.5" High Resolution LED color monitor

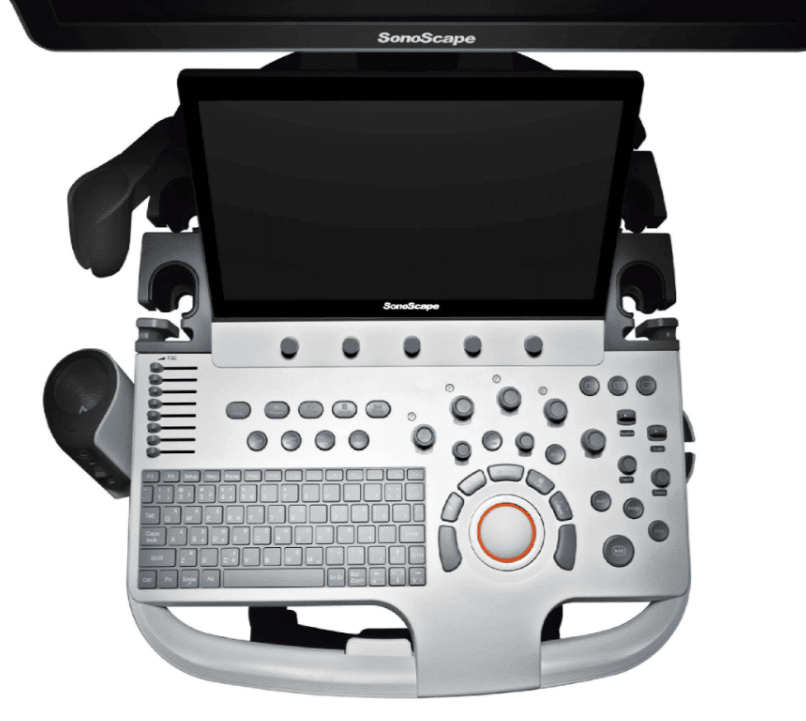

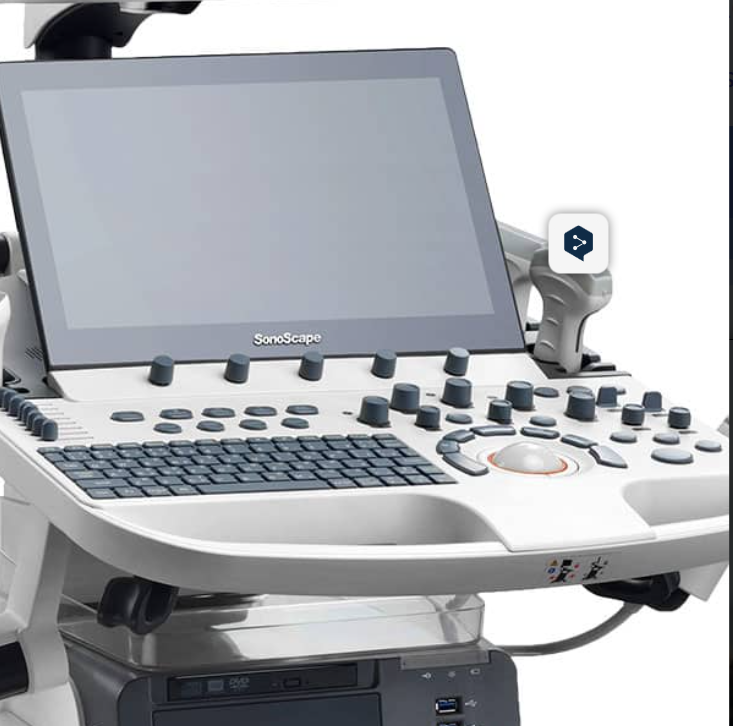

13.3" High Resolution Touch Screen

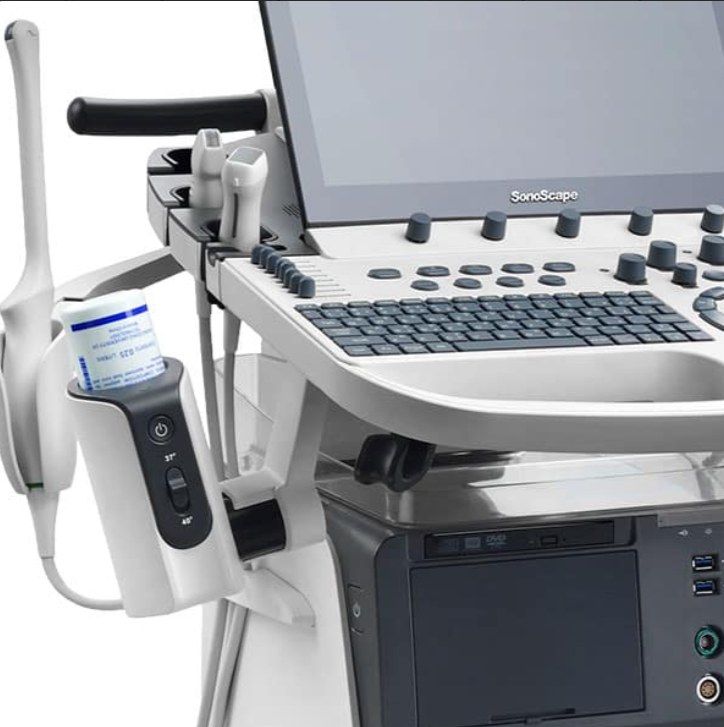

Endocavity probe holder

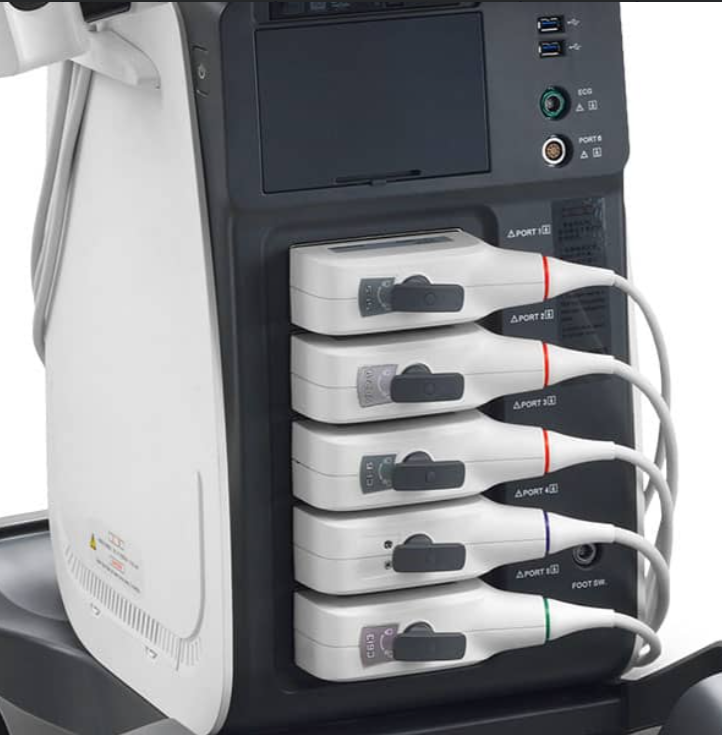

Five transducer connectors
One CW transducer connector
Wifi Module
USB 3.0/ Hard Disk 50
Optional Configuration:
ECG Package (Hardware/ Cables)
