10.1in LED monitor with 1280x800 resolution D-Mode, M-Mode, Color M-Mode
(5D NT™, 5D Follicle™) (CA1-7AD, CA2-9AD, CV1-8AD)
1 year

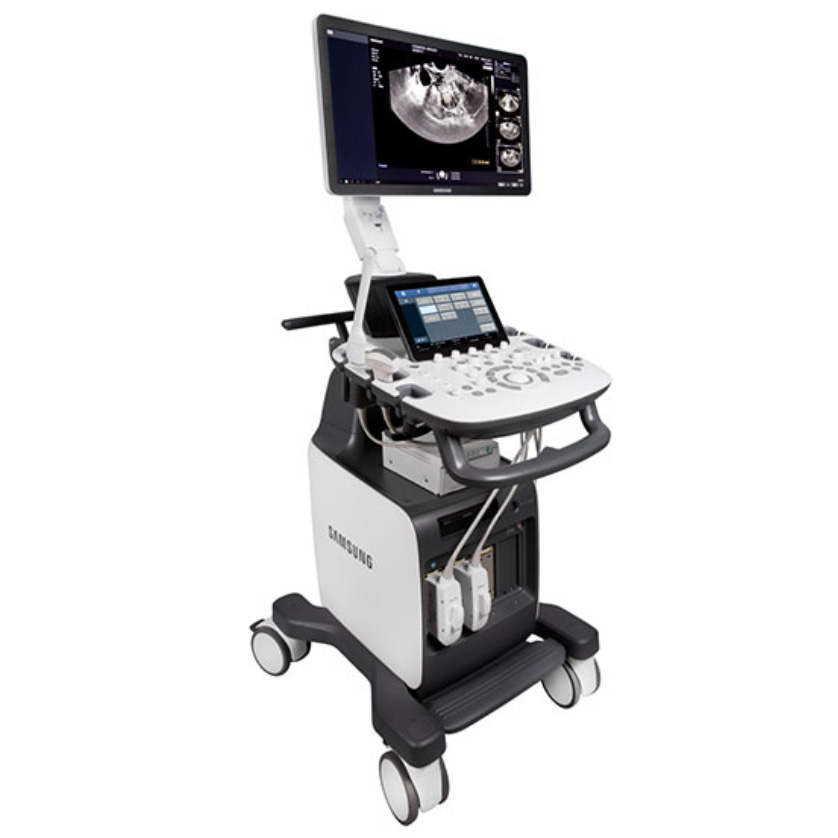

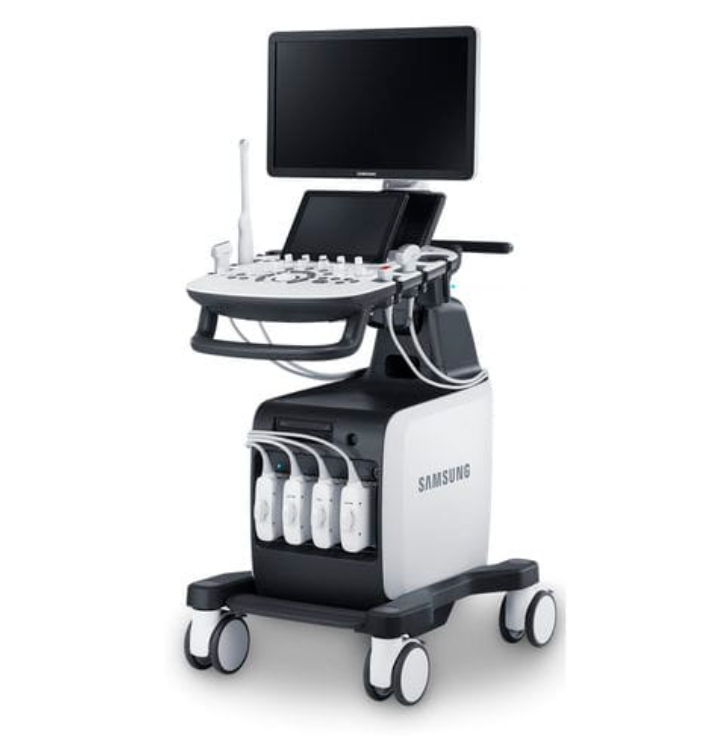

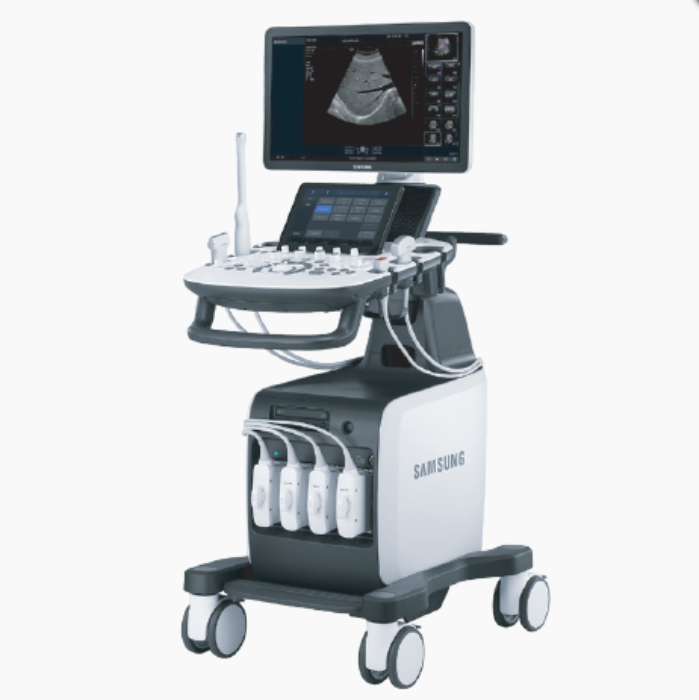

The Samsung HS50 is a midrange multi-purpose diagnostic ultrasound system designed to cover a wide range of applications including OB-GYN, abdominal, pediatric, small parts, neonatal cephalic, adult cephalic,, trans-vaginal, musculoskeletal (conventional, superficial), urology, adult and pediatric cardiac, and peripheral vascular.
The HS50 uses Samsung’s innovative imaging engine and single crystal transducer technology to deliver superior 2D imaging in a wide range of clinical applications.
HS50 Ultrasound Features and Specificities:
Main monitor: 21.5in LED monitor with 1920x1080 resolution
Touch screen monitor: 10.1in LED monitor with 1280x800 resolution
2D-Mode, M-Mode, Color M-Mode
Anatomical Mode
Color Doppler Mode
Pulsed Wave (PW) Spectral Doppler Mode
Continuous Wave (CW) Doppler Mode
Tissue Doppler Imaging (TDI) Mode
Tissue Doppler Wave (TDW) Mode
Power Doppler (PD) Mode
ElastoScan Mode
3D/4D/XI STIC Imaging Mode
Dual Mode
Quad Mode
Combined mode
Simultaneous Mode
S-Flow Mode
Compatible Ultrasound Probes / Transducers:
Samsung CA1-7AD Curved Array Transducer
Samsung CA2-9AD Curved Array Transducer
Samsung CF4-9 Curved Array Transducer
Samsung CV1-8AD Curved Array 3D/4D Transducer
Samsung CW6.0 Non-imaging
Samsung ER4-9 Endocavitary Transducer
Samsung LA3-14AD Linear Array Transducer
Samsung LA3-16A Linear Array Transducer
Samsung PA3-8B Phased Array Transducer
Samsung PE2-4 Phased ArrayTransducer
Samsung V5-9 Vector Array Transducer
Bringing efficient screening to General Imaging
21.5 inch LCD monitor (LED backlight unit) The HS40 features a 21.5 inch LCD monitor (LED backlight unit), delivering excellent contrast resolution, image clarity and vibrant color in any lighting condition. | 10.1-inch touchscreen The Samsung 10.1-inch touchscreen is highly sensitive, allowing for an efficient interaction during the examination. |
Articulating monitor arm Adjust the system to your preferred height without straining, thanks to the smooth upward and downward motion of the gas lift. | Gas lift Adjust the system to your preferred height without straining, thanks to the smooth upward and downward motion of the gas lift. |
NeedleMate+™ NeedleMate+ ensures precise needle targeting when performing commonly used intervention procedures. Beam Steer allows the linear ultrasound image to be steered and improves needle visibility when the angle of insonation and the needle are perpendicular to each other. | Auto IMT+ Auto IMT+ is a screening tool to analyze a patient’s potential risk of cardiovascular disease. It allows easy intima-media thickness measurement of both the anterior and posterior wall of the common carotid with the click of a button. This simple procedure enhances exam productivity and adds diagnostic value. |
S-Vue™ transducers (transducer dependent) HS50 incorporates single crystal technology. Employing an innovative crystal design, S-Vue™ transducers provide more efficient piezoelectric properties, resulting in wider bandwidths that enable better penetration and higher quality resolution on even challenging patients. | Low noise This exceptionally quiet device allows physical exams to be performed, including auscultation, while the ultrasound system is turned on. |
