B, 2B, 4B, B/M, B/BC, CFM, PW, Power Doppler/Directional PD, Instant
366mm*355mm*72mm 5.5Kg
2 years

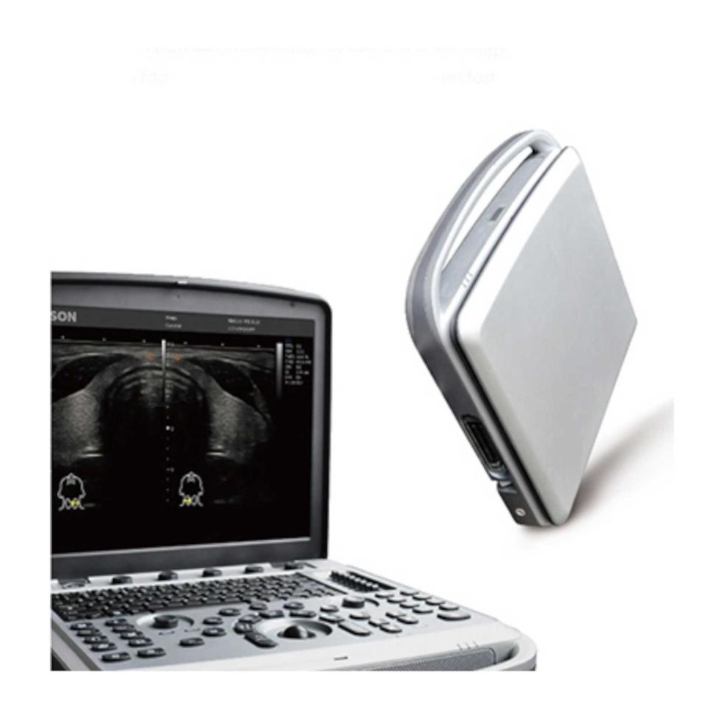

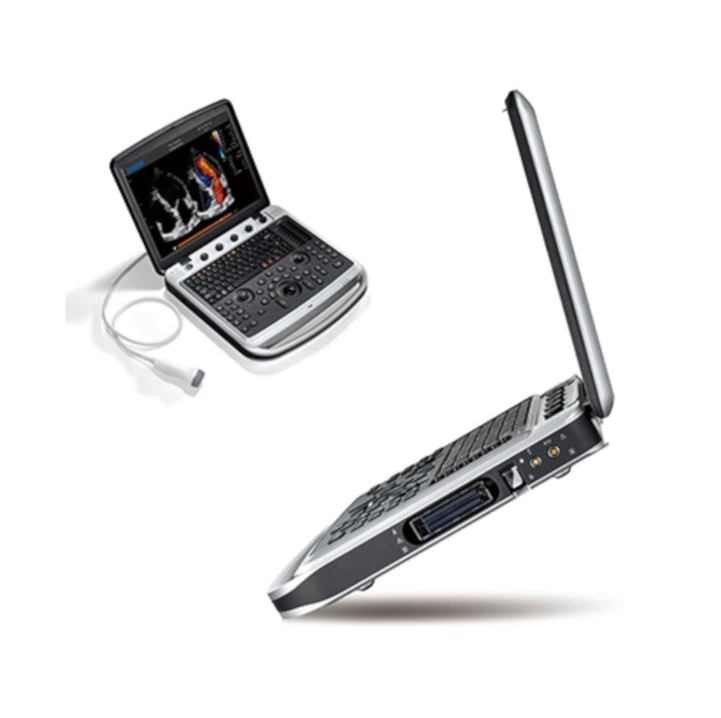

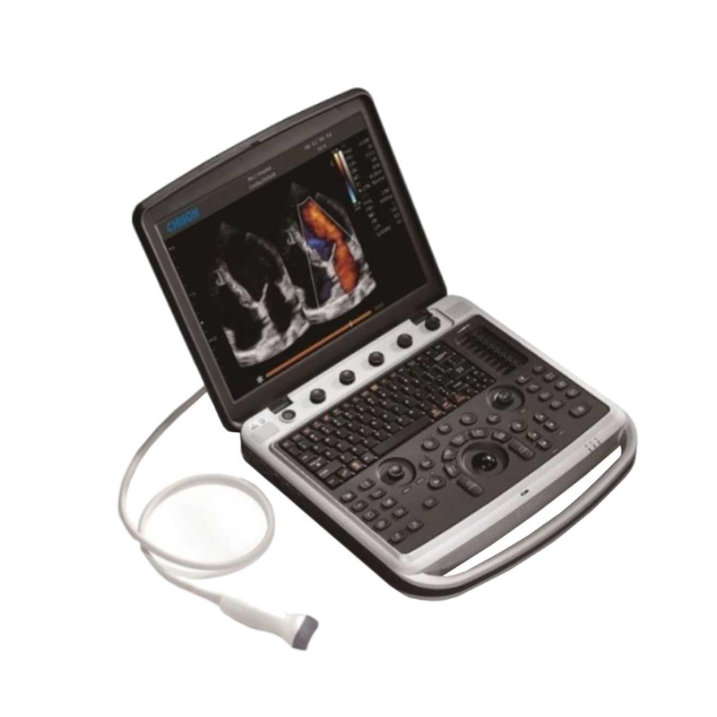

CHISON SONOBOOK 6
经济实惠的紧凑型超声系统结合了先进的功能、卓越的成像性能和直观的工作流程。

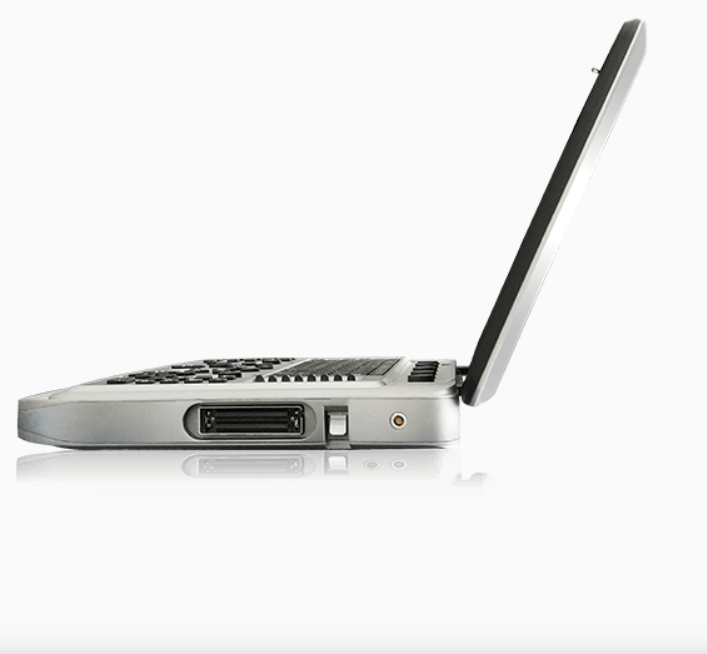

采用紧凑型笔记本电脑设计，便于移动，可在需要快速反应时提供解决方案。
结合高效的功能、清晰的成像性能和直观的工作流程，SONOBOOK 6 可以支持出色的患者护理，并提供经济的临床价值。
功能
主机配备 15 英寸高分辨率 LED 显示器
32G 硬盘；3 个内置 USB 端口
B、2B、4B、B/M、B/BC、CFM、PW、能量多普勒/定向 PD、即时
三重、双重、梯形、色度 B&M&PW
自动 PW 跟踪和测量
超级图像模块：FHI、多重复合成像、SRA（斑点减少算法）、X 对比度、Q 光束、Q 流
自动 IMT
Q 图像（智能图像优化）
测量和计算软件包：综合、妇产科、心脏
C3-V：3.0 MHz 凸探头
L7-V：4.0 MHz – 15.0 MHz 线性探头（40 毫米）
Elastography
Display the elasticity of different tissues in different color
Provide more clinical information, especially for breast tumor, thyroid, liver and prostate
Strain ratio measurement quantitatively gives the ratio between the average strain of the selected region and the nearby normal tissue region.
Auto IMT
The automatic intima-media thickness measurement for fast carotid exam, providing the detailed result of the intima-media thickness, help to make the diagnosis automatically
Super needle
Enhance the needle displayong in image, without distortion of the needle
Decrease the complicated rate, increase the succesful rate

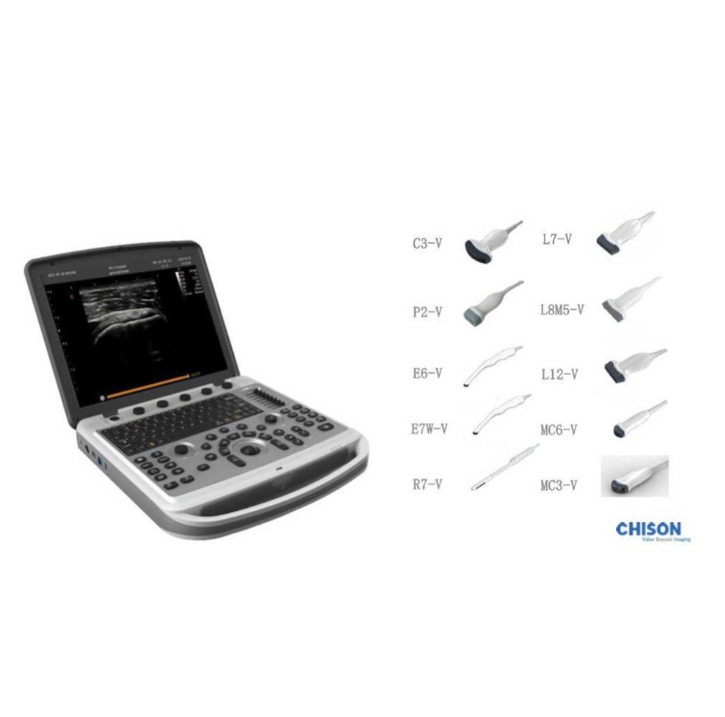

Transducers
C3-V : 3.0MHz convex probe
L7-V : 4.0MHz – 15.0 MHz linear probe
L12-V : 7.0 MHz-18.0 MHz Linear probe (40mm)
L8M5-V : 5.0 MHz-14.0 MHz Linear probe (50mm)
P2-V : 2.5 MHz Phased array probe (Adult)
E6-V : 6.0 MHz Trans-vaginal probe
E7W-V : 7.5 MHz Trans-vaginal probe
R7-V : 7.5 MHz transrectal probe
MC6-V : 6.0 MHz Micro-Convex probe
MC3-V : 3.0 MHz Micro-convex probe
Options Hardware
SONODocking

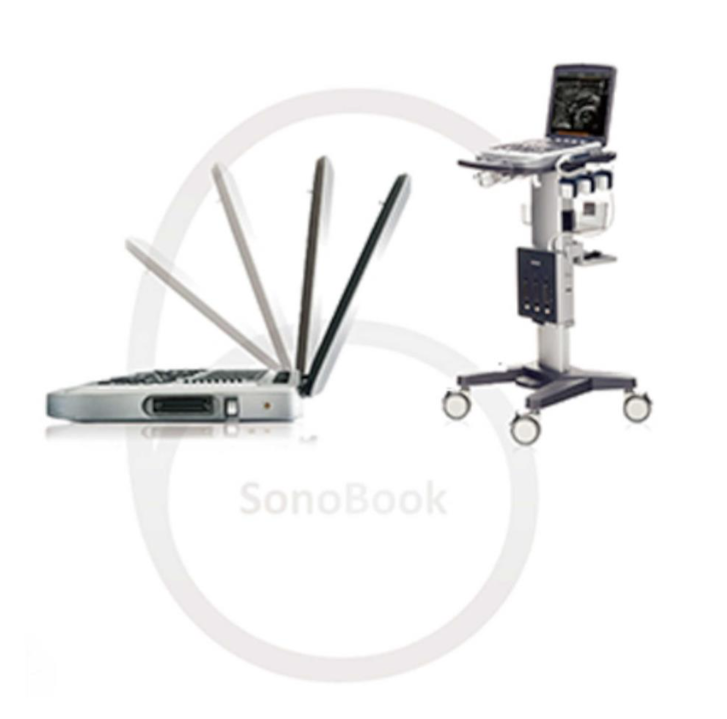

TR-20 : Trolley
SonoTriple Connector
BG-20 Carrying case
BT-3000 Battery BT-3000
BC04-A Biopsy kit for C3-V
BC06-A Biopsy kit for MC3-V
BL03-A : Biopsy kit for L7-V, L12-V
BC03-A : Biopsy kit for MC6-V
BT03-A : Biopsy kit for E6-V
BT04-A : Biopsy kit for E7W-V
BT02-A : Biopsy kit for R7-V
Foot – switch (must be connected with SONODocking)
SonoECG Lead
SONY X898MD B&W Video Printer
Options-Software
2D Steer
Elastography
Super Needle
Extended cardiac package : ECG Software, CW, Color M, TDI
DICOM 3.0
