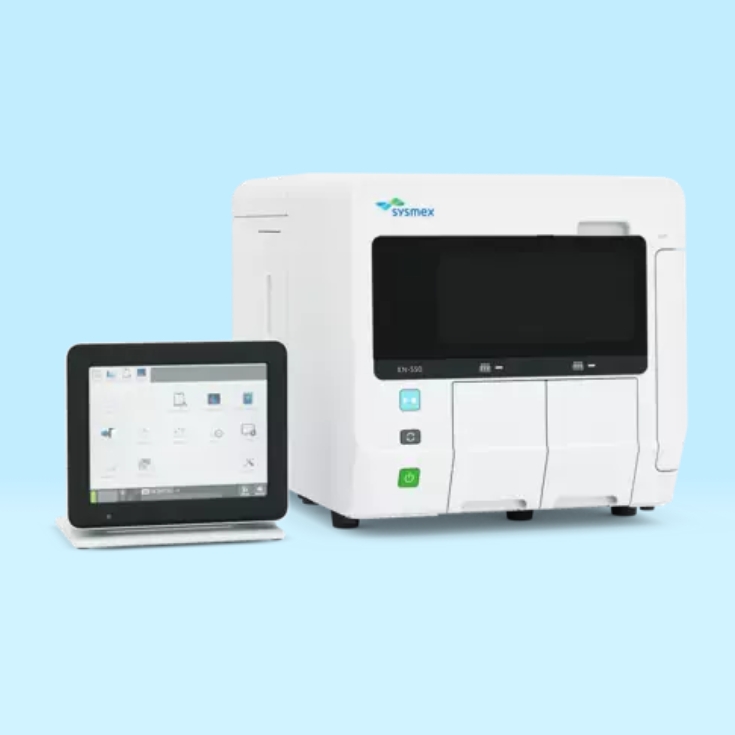

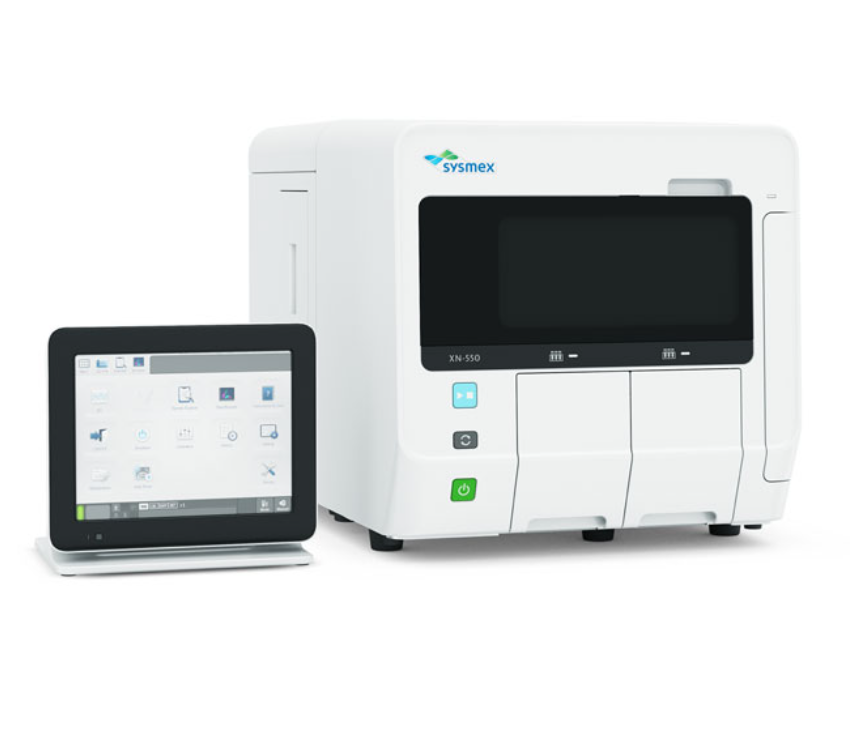

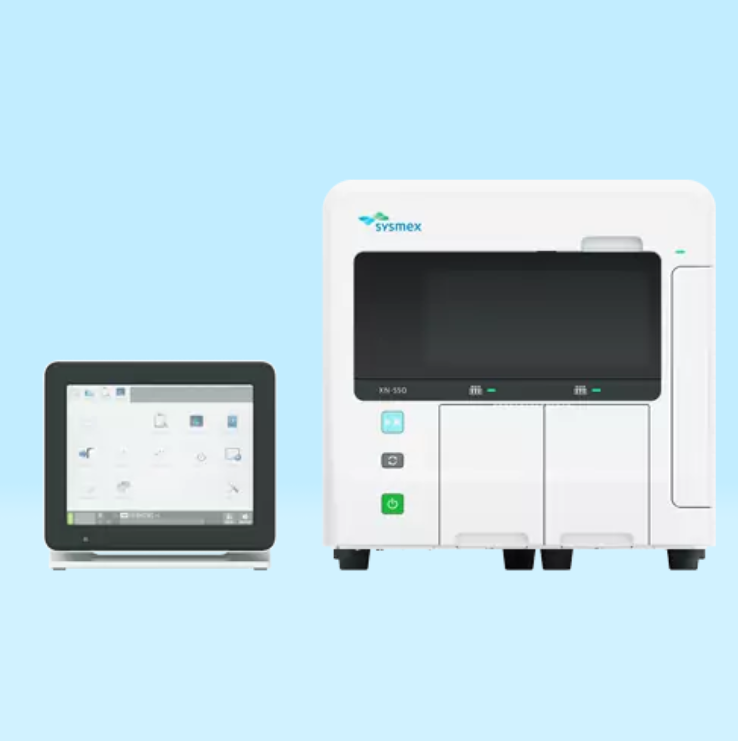

希森美康 XN 550 六分类血液分析仪
自动化紧凑型 6 分类血液分析仪
Component:

XN-550 450 x 450 x 660 Monitor 267 x 240 x 205

Mode:

CBC + DIFF up to 70 CBC + DIFF + RET up to 35 Body fluid mode up to 30

Brand Name::

Sysmex

联系客服 产品手册PDF
产品中心
超声波系统
实验室设备
手术室设备
病房产品
内窥镜/氧气治疗
产品详情

希森美康XN-550 六分类血细胞分析仪，配备自动采样器，因此通过其 Rerun & Reflex 功能和连续加载功能提高了工作流程效率。该型号还具有集成的 IPU，并通过紧凑型 LCD 彩色触摸屏进行操作。XN-550 采用了经过验证的 Sysmex 技术，包括荧光流式细胞术、流体动力学聚焦和我们的无氰化物 SLS 方法，用于测定血红蛋白。它为未来做好了准备，可以通过添加新的临床和生产力值进行升级，或者根据您的需求变化选择进一步的专业服务并连接到我们的扩展 IPU。


自动化紧凑型 6 部分差异血液学分析仪。使用 XN-550，您可以在封闭模式下安全地运行单个样本。它有一个完全集成的 IPU（信息处理单元），包括一个易于操作的 LCD 彩色触摸屏


Sysmex XN 550 可提高生产力


Sysmex XN-550 具有内置自动采样器，可简化您的工作流程。


自动进样器具有连续加载和重新运行与反射功能，可确保高效、不间断地处理样品。


技术人员可以加载样品然后离开，因为他们知道分析仪会处理剩下的工作。


此功能可让技术人员腾出时间执行其他任务，从而显著提高实验室效率。






Parameters 技术参数


Dimensions / weights

  • W x H x D [mm / kg]

  • XN-550: 450 x 450 x 660 / approx. 53 kg

  • Monitor: 267 xx 240 x 205 / approx. 3kg

Throughput

  • CBC + DIFF: up to 70 samples/hour

  • CBC + DIFF + RET: up to 35 samples/hour

  • Body fluide mode: up to 30 samples/hour

Aspiration volume

  • 25 µL in WB / Low WBC mode,

  • 70 µL in PD and BF mode

Analysis parameters

  • Whole Blood
    WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, PDW, MPV, P-LCR, PCT, NEUT#, LYMPH#, MONO#, EO#, BASO#, NEUT%, LYMPH%, MONO%, EO%, BASO%, IG#, IG%

  • With RET (optional)
    RET#, RET%, IRF, LFR, MFR, HFR, RET-He, PLT-O, IPF#, IPF, RBC-He, Delta-He, HYPO-He, HYPER-He

  • Body Fluids (optional)
    WBC-BF, RBC-BF, MN#, PMN#, MN%, PMN%, TC-BF#

Measurement principles

  • WBC DIFF/RET: Fluorescence Flow Cytometry

  • WBC: Flow Cytometry

  • RBC/PLT: DC Impedance method with hydrodynamic focusing

  • HGB: Cyanide-free SLS method

Data storage capacities

  • Results: 100,000 samples

  • Patient information: 10,000 records

  • Calibration history: 20 times/ module

  • QC files: 99 files including XbarM

  • QC plots: 300 plots / file


User maintenance

  • Daily shutdown

  • Weekly cleaning sequence with Cellclean or Cellclean Auto




Easy to use Sysmex XN 550 software

The XN-550 features a compact color touchscreen display.

This interface is user-friendly and easy to operate, reducing the learning curve for lab personnel.

When your testing demographic changes, upgrade the system with new clinical metrics and connect to the Extended IPU for updates.

This allows your lab to access extended professional services and meet evolving diagnostic needs.

Ask us to include a comprehensive service contract with reagent and consumable costs in your quote.

You get a big picture of the total cost of ownership and see how the XN 550 makes your operation more profitable in the long run.



Sysmex XN 550 applications



  • Pediatrics and neonatology

  • Small blood volume analysis

  • Accurately analyzes small blood volumes, ideal for pediatric and neonatal patients.


  • Enumerates immature granulocytes

  • Provides detailed counts of immature granulocytes and antibody-prod

  • Dialysis units

  • Reticulocyte hemoglobin assessment

  • Monitors reticulocyte hemoglobin (RET-He) for effective EPO therapy management.


  • Enumerates immature granulocytes

  • Offers comprehensive analysis of peritoneal dialysis fluid, aiding in patient monitoring and care.




  • Neurology

  • Cytological analysis of cerebrospinal fluid

  • Delivers fast and standardized results, ensuring timely diagnosis and treatment of neurological conditions.

  • Oncology

  • Leukopenic sample analysis

  • Accurately measures leukopenic samples with reliable neutrophil counts during chemotherapy for effective treatment management.

  • Oncology

  • Leukopenic sample analysis

  • Accurately measures leukopenic samples with reliable neutrophil counts during chemotherapy for effective treatment management.
