15" LCD monitor 2 active ports for connecting sensors Built-in battery with charge for 120 min. continuous operation Hard drive 465 GB Ports usb, lan, vga, dvi, video
Six- one- key Procedure Anatomy-specific Presets Efficient Data Management User-fiendly Interface Shortcut key for quick access Auto Measurements
Chison Medical Imaging 是超声诊断系统市场的领先制造商之一，与包括俄罗斯在内的一百多个国家的专家和医生开展了卓有成效的合作。
Chison 超声波机技术先进，价格极具竞争力。
Chison Sonotouch 系列便携式超声波机已获得广泛认可，由于其结构紧凑，不仅可在诊所内使用，也可在诊所外使用。
便携式超声波机结合了多波束扫描功能、图像质量增强技术和先进的 FHI 组织谐波模式，可进行高度精确和细致的检查。
Features and Benefits:
Sonotouch 80 utilizes advanced ultrasound transducer technology, increasing frequency range, increasing sensitivity and signal-to-noise ratio, providing superior anatomical detail with high resolution and penetration, especially for complex patients.

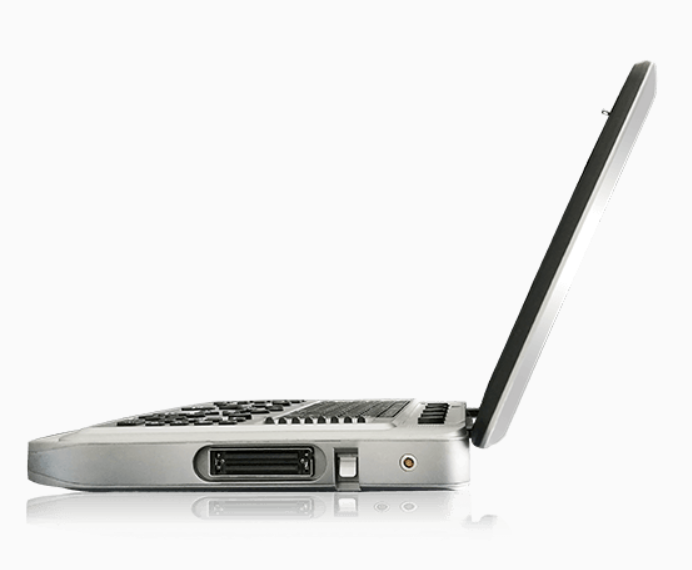

The model is highly compact and weighs less than 5.5 kg with battery.
Despite its small size, the operating speed of the model remains high. Loading time < 1 min. Switch-off time < 12 sec. Save images and videos in 1 second. Instant switching between modes.
The scope of SonoTouch 80 is very wide: abdominal cavity, obstetrics, gynecology, cardio, vascular, urology, pediatrics, neonatology, orthopedics, anesthesia, emergency medicine and care.
Innovative harmonic imaging technology using different transmission and reception methods depending on the size and weight of the patient. This feature allows the Sonotouch 80 to work with heavy-bodied patients. Traditional tissue and phase harmonic technologies are forced to sacrifice image quality and resolution during a deeper study. Chison's FHI technology significantly improves diagnostic capabilities and improves the chances of treating large patients who are usually difficult to examine.
Scan modes:
B, 2B, 4B; B/M, M; B/D, CW
Enhanced Biopsy Needle Visualization Mode
Color Doppler mapping
Pulse, directional, color, power Doppler
Composite image
Measuring intima media thickness
Duplex, triplex modes
Trapezoidal image
Fabric harmonica
Grain reduction technology
Chroma technology
Image enhancement module (FHI, X-contrast, Q-beam, Q-flow)
Q-flow technology: Automatically adjusts color and noise estimates to suit different tissues
X-contrast technology: Significantly increases the contrast resolution of different fabrics for improved signal-to-noise ratio with switching between three modes
Q-beam technology: uses four beams to receive signal to ensure better diagnostic performance
Innovative FHI tissue harmonic mode
Creation and import of reports with the ability to add images
Maintaining a patient database, the ability to save and search for images and clips using various database fields
Specifications
15" LCD monitor
2 active ports for connecting sensors
Built-in battery with charge for 120 min. continuous operation
Hard drive 465 GB
Ports usb, lan, vga, dvi, video
Probe Options
C3-V 3.0 MHz Convex probe
MC3-V 3.0 MHz Micro-convex probe
MC6-V 6.0 MHz Micro-Convex probe
L7-V 4.0 MHz-15.0 MHz Linear probe (128 elements, 40mm)
L12-V 7.0 MHz-18.0 MHz Linear probe (128 elements, 40mm)
L8M5-V 5.0 MHz-14.0 MHz Linear probe (192 elements, 50mm)
P2-V 2.5 MHz Phased array probe (Adult)
L7V-V 7.5 MHz Linear Rectal Probe L7V-V
